육각 렌치볼트

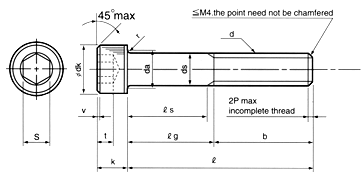

■ Dimensions Unit : mm
Nom
Size
d		 Pitch

P		 Thread
Length
b		 ds dk k S t r da v
최대 최소 최대 최소 최대 최소 최대 최소 최소 최소 최대 최대
M1.6
2
2.5		 0.35
0.4
0.45		 15
16
17		 1.6
2
2.5		 1.46
1.86
2.36		 3.14
3.98
4.68		 2.86
3.62
4.32		 1.6
2
2.5		 1.46
1.86
2.36		 1.545
1.545
2.045		 1.520
1.520
2.020		 0.7
1
1.1		 0.1
0.1
0.1		 2
2.6
3.1		 0.16
0.2
0.25
(2.6)
3
4		 0.45
0.5
0.7		 -
18
20		 -
3
4		 -
2.86
3.82		 4.50
5.68
7.22		 4.32
5.32
6.78		 2.6
3
4		 2.46
2.86
3.82		 2.045
2.560
3.080		 2.020
2.520
3.020		 1.1
1.3
2		 0.1
0.1
0.2		 3.2
3.6
4.7		 -
0.3
0.4
5
6
8		 0.8
1
1.25		 22
24
28		 5
6
8		 4.82
5.82
7.78		 8.72
10.22
13.27		 8.28
9.78
12.73		 5
6
8		 4.82
5.70
7.64		 4.095
5.095
6.095		 4.020
5.020
6.020		 2.5
3
4		 0.2
0.25
0.4		 5.7
6.8
9.2		 0.5
0.6
0.8
10
12
(14)		 1.5
1.75
2		 32
36
40		 10
12
14		 9.78
11.73
13.73		 16.27
18.27
21.33		 15.73
17.73
20.67		 10
12
14		 9.64
11.57
13.57		 8.115
10.115
12.142		 8.025
10.025
12.032		 5
6
7		 0.4
0.6
0.6		 11.2
13.7
15.7		 1
1.2
1.4
16
(18)
20		 2
2.5
2.5		 44
48
52		 16
18
20		 15.73
17.73
19.67		 24.33
27.33
30.33		 23.67
26.67
29.67		 16
18
20		 15.57
17.57
19.48		 14.142
14.142
17.230		 14.032
14.032
17.050		 8
9
10		 0.6
0.6
0.8		 17.7
20.2
22.4		 1.6
1.8
2
(22)
24
(27)		 2.5
3
3		 56
60
66		 22
24
27		 21.67
23.67
26.67		 33.39
36.39
40.39		 32.61
35.61
39.61		 22
24
27		 21.48
23.48
26.48		 17.230
19.275
19.275		 17.050
19.065
19.065		 11
12
13.5		 0.8
0.8
1		 24.4
26.4
30.4		 2.2
2.4
2.7
30
(33)
36		 3.5
3.5
4		 72
78
84		 30
33
36		 29.67
32.61
35.61		 45.39
50.39
54.46		 44.61
49.61
53.54		 30
33
36		 29.48
32.38
35.38		 22.275
24.275
27.275		 22.065
24.065
27.065		 15.5
16.5
19		 1
1
1		 33.4
36.4
39.4		 3
3.3
3.6
(39)
42
(45)		 4
4.5
4.5		 90
96
102		 39
42
45		 38.61
41.61
44.61		 58.46
63.46
68.46		 57.54
62.54
67.54		 39
42
45		 38.38
41.38
44.38		 27.275
32.330
32.330		 27.065
32.080
32.080		 20
21
23		 1
1.2
1.2		 42.4
45.6
48.6		 3.9
4.2
4.5
48
(52)
 5
5		 108
116
 48
52		 47.61
51.54		 72.46
78.46		 71.54
77.54		 48
52		 47.38
51.26		 36.330
36.330		 36.080
36.080		 24
26		 1.6
1.6		 52.6
56.6		 4.8
5.
