육각접시머리 렌치볼트

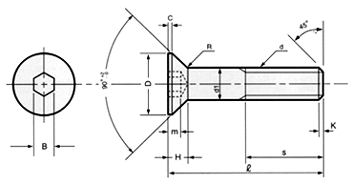

■ Dimensions Unit : mm
Nom
Size
d		 d1 D H B m R K C S
최대 최소 최대 최소 최대 최대 최소 최대 최소 approx 최대 approx min Thread
Length
M3 3.0 2.86 6.0 5.7 1.7 2.046 2.006 1.2 0.95 0.1 0.8 0.25 12
4 4.0 3.82 8.0 7.6 2.3 2.566 2.506 1.8 1.55 0.2 1.0 0.3 14
5 5.0 4.82 10.0 9.6 2.8 3.066 3.006 2.3 2.05 0.2 1.2 0.3 16
6 6.0 5.82 12.0 11.6 3.3 4.085 4.010 2.5 2.25 0.3 1.5 0.4 18
8 8.0 7.78 16.0 15.6 4.4 5.085 5.010 3.5 3.2 0.5 1.8 0.4 22
10 10.0 9.78 20.0 19.5 5.5 6.085 6.010 4.4 4.1 0.5 2.2 0.5 26
12 12.0 11.73 24.0 23.5 6.5 8.103 8.013 4.6 4.3 1 2.5 0.5 30
16 16.0 15.73 30.0 29.5 7.5 10.103 10.013 5.3 5.0 1 3.0 0.5 38

■ Dimensions Unit : mm
Nom
Size
d		 ℓ &Tensile (kgf) Load
[N]
Fully threaded Half threaded
M3 8 10 12 14 15 16 18 20 25 30 35 40 530 5,200
4 8 10 12 14 15 16 18 20 25 30 35 40 930 9,100
5 10 12 14 15 16 18 20 25 30 35 40 45 50 1,500 14,710
6 12 14 15 16 18 20 25 30 35 40 45 50 60 2,130 20,890
8 14 15 16 18 20 25 30 35 40 45 50 60 70 80 3,880 38,050
10 16 18 20 25 30 35 40 45 50 60 70 80 90 100 6,150 60,310
12 20 25 30 35 40 45 50 60 70 80 90 100 8,900 87,280
16 30 35 40 45 50 60 70 80 90 100 16,600 162,800


■ Tolerance on ℓ Unit : mm
■ Tolerance on ℓ Unit : mm
Division of S Tolerance
 18 +2
0
18 ~ 30 +3
0
30  +4
0
Division of ℓ M3 ~ M10 M12 ~ M16
 50 ± 0.4 ± 0.5
50 ~ 120 ± 0.5 ± 0.6
120 ~ 250 ± 0.6 ± 0.7
